Applying the flightPATH rule

The application of any flightPATH rule is made within the flightPATH tab of each VIP/VS.

 Navigate to Services > IP Services and choose the VIP to which you wish to assign the flightPATH rule.

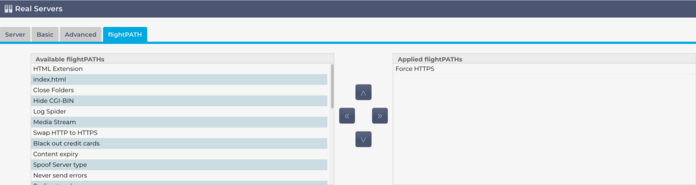

 You will see the Real Server list shown below

 Click on the flightPATH tab

 Select the flightPATH rule you have configured or one of the pre-built ones supported. You can select multiple flightPATH rules if required.

 Drag and drop the selected set to the Applied flightPATHs section or click the >> arrow button.

 The rule will be moved to the right side and automatically applied.
