Adding a new flightPATH rule

Field	Description
FlightPATH Name	This field is for the name of the flightPATH rule. The name you provide here appears in and is referenced within other parts of the ADC.
Applied to VS	This column is read-only and shows the VIP to which the flightPATH rule is applied.
Description	Value representing a description provided for readability purposes.

Steps to add a flightPATH rule

1. First, click the Add New button located in the Details section.

2. Enter a name for your rule. Example Auth2

3. Enter a description of your rule

4. Once the rule has been applied to a service, you will see the Applied To column auto-populate with an IP address and port value

5. Don't forget to hit the Update button to save your changes or if you make a mistake, just hit cancel revert to the previous state.

Condition

A flightPATH rule can have any number of conditions. The conditions work on an AND basis allow you to set the condition on which the action is triggered. If you want to use an OR condition, create additional flightPATH rules and apply it to the VIP in the correct order.

You can also use RegEx by selecting Match RegEx in the Check field and the RegEx value in the Value field. The inclusion of RegEx evaluation extends the capability of flightPATH tremendously.

Creating a new flightPATH condition

You first have to select a value from the Condition column.

We provide several Conditions within the dropdown and cover all foreseen scenarios. When new Conditions are added, these will be available through Jetpack updates.

Choices available are:

CONDITION	DESCRIPTION	EXAMPLE
<form>	HTML forms are used to pass data to a server	Example "form doesn't have length 0"
GEO Location	Compares the source IP address to the ISO 3166 Country Codes	GEO Location does equal GB, OR GEO Location does equal Germany
Host	Host extracted from the URL	www.mywebsite.com or 192.168.1.1
Language	Language extracted from the language HTTP header	This condition will produce a dropdown with a list of Languages
Method	Dropdown of HTTP methods	Dropdown that includes GET, POST, etc
Origin IP	If upstream proxy supports X-Forwarded-for (XFF) it will use the true Origin address	Client IP. It can also use multiple IPs or subnets. 10\.1\.2\.* is 10.1.2.0 /24 subnet 10\.1\.2\.3\|10\.1\.2\.4 Use \| for multiple IP’s
Path	Path of the website	/mywebsite/index.asp
POST	POST request method	Check data being uploaded to a website
Query	Name and value of a query, and can either accept the query name or a value also	"Best=jetNEXUS" Where the Match is Best and the Value is edgeNEXUS
Query String	The whole query string after the ? character
Request Cookie	Name of a cookie requested by a client	MS-WSMAN=afYfn1CDqqCDqUD::
Request Header	Any HTTP Header	Referrer, User-Agent, From, Date
Request Version	The HTTP version	HTTP/1.0 OR HTTP/1.1
Response Body	A user defined string in the response body	Server UP
Response Code	The HTTP code for the response	200 OK, 304 Not Modified
Response Cookie	The name of a cookie sent by the server	MS-WSMAN=afYfn1CDqqCDqUD::
Response Header	Any HTTP Header	Referrer, User-Agent, From, Date
Response Version	The HTTP version sent by the server	HTTP/1.0 OR HTTP/1.1
Source IP	Either the origin IP, proxy server IP, or some other aggregated IP address	Client IP, Proxy IP, Firewall IP. Can also use multiple IP and subnets. You must escape the dots as these are RegEX. Example 10\.1\.2\.3 is 10.1.2.3

Match

The Match field can be either a drop-down or a text value and is definable depending on the value in the Condition field. For example, if the Condition is set to Host, the Match field is not available. If the Condition is set to <form>, the Match field is shown as a text field, and if the Condition is POST, the Match field is presented as a drop-down containing pertinent values.

Choices available are:

MATCH	DESCRIPTION	EXAMPLE
Accept	Content-Types that are acceptable	Accept: text/plain
Accept-Encoding	Acceptable encodings	Accept-Encoding: <compress \| gzip \| deflate \| sdch \| identity>
Accept-Language	Acceptable languages for response	Accept-Language: en-US
Accept-Ranges	What partial content range types this server supports	Accept-Ranges: bytes
Authorization	Authentication credentials for HTTP authentication	Authorization: Basic QWxhZGRpbjpvcGVuIHNlc2FtZQ==
Charge-To	Contains account information for the costs of the application of the method requested
Content-Encoding	The type of encoding used	Content-Encoding: gzip
Content-Length	The length of the response body in Octets (8-bit bytes)	Content-Length: 348
Content-Type	The mime type of the body of the request (used with POST and PUT requests)	Content-Type: application/x-www-form-urlencoded
Cookie	A HTTP cookie previously sent by the server with Set-Cookie (below)	Cookie: $Version=1; Skin=new;
Date	Date and time at message was originated	Date = “Date” “:” HTTP-date
ETag	An identifier for a specific version of a resource, often a message digest	ETag: “aed6bdb8e090cd1:0”
From	The email address of the user making the request	From: user@example.com
If-Modified-Since	Allows a 304 Not Modified to be returned if the content is unchanged	If-Modified-Since: Sat, 29 Oct 1994 19:43:31 GMT
Last-Modified	The last modified date for the requested object, in RFC 2822 format	Last-Modified: Tue, 15 Nov 1994 12:45:26 GMT
Pragma	Implementation: Specific headers that may have various effects anywhere along the request-response chain.	Pragma: no-cache
Referrer	Address of the previous web page from which a link to the currently requested page was followed	Referrer: HTTP://www.edgenexus.io
Server	A name for the server	Server: Apache/2.4.1 (Unix)
Set-Cookie	A HTTP cookie	Set-Cookie: UserID=JohnDoe; Max-Age=3600; Version=1
User-Agent	The user agent string of the user agent	User-Agent: Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; WOW64; Trident/5.0)
Vary	Tells downstream proxies how to match future request headers to decide whether the cached response can be used rather than requesting a fresh one from the origin server	Vary: User-Agent
X-Powered-By	Specifies the technology (e.g. ASP.NET, PHP, JBoss) supporting the web application	X-Powered-By: PHP/5.4.0

Sense

The Sense field is a drop-down Boolean field and contains either Does or Doesn't choices.

Check

The Check field allows the setting of check values against the Condition.

Choices available are: Contain, End, Equal, Exist, Have Length, Match RegEx, Match List, Start, Exceed Length

CHECK	DESCRIPTION	EXAMPLE
Exist	This does not care for the detail of the condition just that it does/doesn't exist	Host > Does >Exist
Start	The string starts with the Value	Path >Does >Start >/secure
End	The string ends with the Value	Path >Does >End — .jpg
Contain	The string does contain the Value	Request Header >Accept >Does >Contain >image
Equal	The string does Equal the Value	Host >Does >Equal >www.edgenexus.io
Have Length	The string does have a length of the value	Host >Does >Have Length >16 www.edgenexus.io = TRUE www.edgenexus.com = FALSE
Match RegEx	Enables you to enter a full Perl compatible regular expression	Origin IP >Does >Match Regex
Match List	Enables you to match the value against a list of values. This is useful when there are say, specific IP addresses that need matching against. Values are separated using commas (,) or pip (\|).	Source IP > Does > Match List > 10.10.10.1, 10.10.10.2, 10.10.10.3 etc
Exceed Length	Allows you to check if the value exceeds the length specified.	Path > Does > Exceed Length > 200

Steps to add a Condition

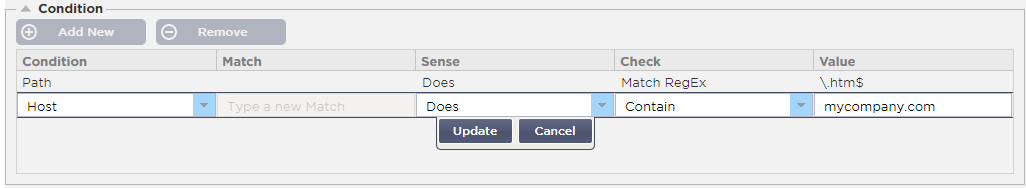

Adding a new flightPATH Condition is very easy. An example is shown above.

1. Click the Add New button within the Condition area.

2. Choose a condition from the drop-down box. Let's take Host as an example. You can also type into the field, and the ADC will show the value in a drop-down.

3. Choose a Sense. For example, Does

4. Choose a Check. For example, Contain

5. Choose a value. For example, mycompany.com

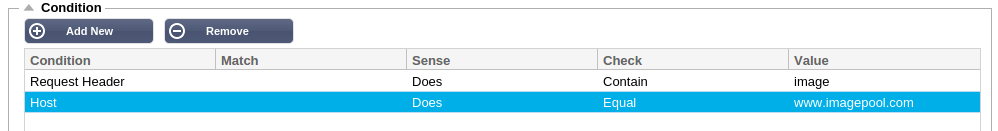

The above example shows that there are two conditions that both have to be TRUE for the rule to complete

 The first is checking that the requested object is an image

 The second checks whether the host in the URL is www.imagepool.com

Evaluation

The ability to add definable variables is a compelling capability. Other ADC's offer this capability using scripting or command-line options that are not ideal for anyone. The EdgeADC allows you to define any number of variables using an easy-to-use GUI, as shown and described below.

flightPATH variable definition comprises four entries that need to be made.

 Variable – this is the name of the variable

 Source – a drop-down list of possible source points

 Detail – select values from a drop-down or manually typed.

 Value – the value that the variable holds and can be an alphanumeric value or a RegEx for fine-tuning.

Built-in Variables:

Built-In variables have already been hardcoded, so you do not need to create an evaluation entry for these.

You can use any of the variables listed below in the Action section.

 $sourceip$ - The source IP address of the request

 $sourceport$ - The source port that was used

 $clientip$ - The IP address of the client

 $clientport$ - The port used by the client

 $host$ - The host named in the request

 $method$ - The method used: GET, POST etc

 $path$ - The path specified in the request

 $querystring$ - The querystring used in the request

 $version$ - The version of the HTTP request in the REQUEST (only 1 and 1.1 allowed at present).

 $resp$ - The RESPONSE from the server. eg. 200OK, 404 etc.

 $geolocation$ - The GEO location from where the request originated.

ACTION	TARGET
Action = Redirect 302	Target = HTTPs://$host$/404.html
Action = Log	Target = A client from $sourceip$:$sourceport$ has just made a request $path$ page

Explanation:

 A client accessing page that does not exist would ordinarily be presented with the browser’s 404 Error page

 Instead, the user is redirected to the original hostname they used, but the incorrect path is replaced with 404.html

 An entry is added to the Syslog saying, "A client from 154.3.22.14:3454 has just requested the wrong.html page."

Action

The next stage in the process is to add an action associated with the flightPATH rule and condition.

In this example, we want to rewrite the path portion of the URL to reflect the URL typed by the user.

 Click Add New

 Choose Rewrite Path from the Action drop-down menu

 In the Target field, type in $path$/myimages

 Click Update

This action will add /myimages to the path, so the final URL becomes www.imagepool.com/myimages

Action	Description	Example
Add Request Cookie	Add request cookie detailed in the Target section with value in Data section	Target= Cookie Data= MS-WSMAN=afYfn1CDqqCDqCVii
Add Request Header	Add a request header of Target type with value in Data section	Target= Accept Data= image/png
Add Response Cookie	Add Response Cookie detailed in the Target section with value in Data section	Target= Cookie Data= MS-WSMAN=afYfn1CDqqCDqCVii
Add Response Header	Add request header detailed in the Target section with value in the Data section	Target= Cache-Control Data= max-age=8888888
Body Replace All	Search the Response Body and replace all instances	Target= http:// (Search string) Data= https:// (Replacement string)
Body Replace First	Search the Response Body and replace first instance only	Target= http:// (Search string) Data= https:// (Replacement string)
Body Replace Last	Search the Response Body and replace last instance only	Target= http:// (Search string) Data= https:// (Replacement string)
Drop	This will drop the connection	Target= N/A Data= N/A
e-Mail	Will send an email to the address configured in Email Events. You can use a variable as the address or the message	Target= “flightPATH has emailed this event” Data= N/A
Log Event	This will log an event to the System log	Target= “flightPATH has logged this in syslog” Data= N/A
Redirect 301	This will issue a permanent redirect	Target= http://www.edgenexus.io Data= N/A
Redirect 302	This will issue a temporary redirect	Target= http://www.edgenexus.io Data= N/A
Remove Request Cookie	Remove request cookie detailed in the Target section	Target= Cookie Data= MS-WSMAN=afYfn1CDqqCDqCVii
Remove Request Header	Remove request header detailed in the Target section	Target=Server Data=N/A
Remove Response	Remove response cookie detailed in the Target section Cookie	Target=jnAccel
Remove Response	Remove the response header detailed in Target section Header	Target= Etag Data= N/A
Replace Request Cookie	Replace request cookie detailed in the Target section with value in the Data section	Target= Cookie Data= MS-WSMAN=afYfn1CDqqCDqCVii
Replace Request Header	Replace request header in the Target with Data value	Target= Connection Data= keep-alive
Replace Response	Replace the response cookie detailed in Target section with value in Data section Cookie	Target=jnAccel=afYfn1CDqqCDqCVii Date=MSWSMAN=afYfn1CDqqCDqCVii
Replace Response	Replace the response header detailed in Target section with value in Data section Header	Target= Server Data= Withheld for Security
Rewrite Path	This will allow you to redirect the request to new URL based on the condition	Target= /test/path/index.html$querystring$ Data= N/A
Use Secure Server	Select which secure server or virtual service to use	Target=192.168.101:443 Data=N/A
Use Server	Select which server or virtual service to use	Target= 192.168.101:80 Data= N/A
Encrypt Cookie	This will 3DES Encrypt cookies and then base64 encode them	Target= Enter the cookie name to be encrypted, you may use the * as a wild card at the end Data= Enter a pass phrase for the encryption

A flightPATH rule scenario

A customer has an e-commerce site and is having issues with cookies being blocked by the latest versions of a browser.

The customer traces the issues and finds the root cause to be the lack of ‘secure’ and ‘same-site’ tagging for the cookies in question.

Let’s look at how flightPATH can help.

 We have a cookie by the name ‘wp_woocommerce_session_97929973749972642’

 The name of the cookie is ‘wp_woocommerce_session_’ with a random unique ID value of ‘97929973749972642’ generated by the e-commerce system.

 The tags for ‘same-site’ and ‘secure’ tags appear to be blank, hence the cookie is blocked by the browser’s new security restrictions.

 To prevent this happening, we can create the following flightPATH rules.

 flightPATH Rule for Session ID

o Condition:

Leave blank

o Evaluation:

Variable = $variable_1$

Source = Response cookie

Detail = wp_woocommerce_session_*

o Action:

Action = Replace Response Cookie

Target = wp_woocommerce_session_*

Data = $variable_1$

 flightPATH Rule for Tags

o Condition:

Condition = Response Cookie

Match = woocommerce_cart_hash

Sense = Does

Check = Exist

Value = Leave blank

o Evaluation:

Variable = $variable_2$

Source = Response Cookie

Detail = woocommerce_cart_hash

Value = Leave blank

o Action:

Action = Replace Response Cookie

Target = woocommerce_cart_hash

Data = $variable_2$,SameSite=None,Secure

Now you apply the rules to the Virtual Service(s) that require them.
