Required Content Server Configuration

 Single Arm Mode – one interface is utilized, but the service VIP and the Real Servers must be on different subnets.

 Dual Arm Mode – two interfaces are utilized, but the service VIP and real servers must be on different subnets.

 In each case, Single and Dual Arm, the Real Servers need to configure their default gateway to the ADC interface address on the relevant subnet.

Single Arm example

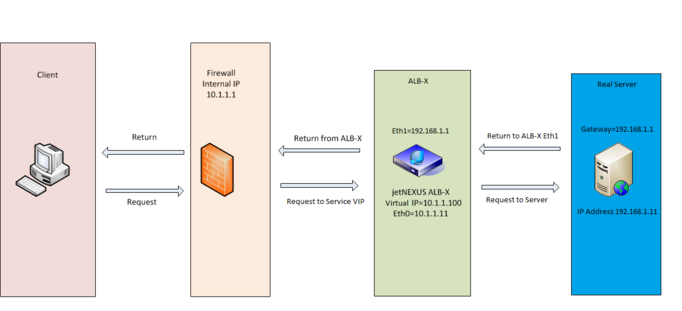

Dual Arm example
