Forms

This section will enable you to upload a custom form.

How to create your custom form

Although the basic form the ADC provides is sufficient for most purposes, there will be occasions where companies wish to present their own identity to the user. You can create your custom form that users will be presented with to fill in in such cases. This form must be in either HTM or HTML format.

Option	Description
Name	form name = loginform action = %JNURL% Method = POST
Username	Syntax: name = “JNUSER”
Password:	name=”JNPASS”
Optional Message1:	%JNMESSAGE%
Optional Message2:	%JNAUTHMESSAGE%
Images	If you wish to add an image, then please add it in-line using Base64 encoding.

Example html code of a very basic and simple form

<HTML>

<HEAD>

<TITLE>SAMPLE AUTH FORM</TITLE>

</HEAD>

<BODY>

%JNMESSAGE%<br>

PASS: <input type=”password” name=”JNPASS” size=”20” value=””></br>

</form>

</BODY>

</HTML>

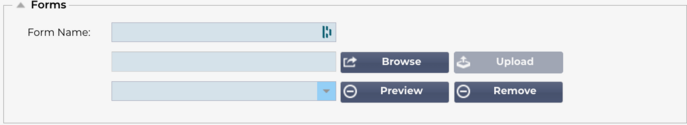

Adding a custom form

Once you have created a custom form, you can add it using the Forms section.

1. Choose a name for your form

2. Browse locally for your form

3. Click Upload

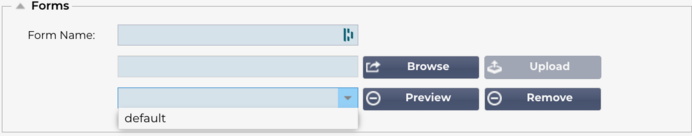

Previewing your custom form

To view the custom form that you have just uploaded, you select it and click Preview. You may also use this section to delete forms that are no longer required.

Note: When using cookie filtering products such as AdGuard, you may get a 404-error message. Whitelist the ADC’s IP address to prevent this.
