Capture

To capture network traffic, follow the simple instructions below.

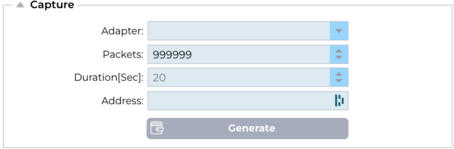

 Complete the options in the form

 Click Generate

 Once the capture has run, your browser will pop up and ask you where you wish to save the file. It will be in the format “jetNEXUS.cap.gz”

 Raise a support ticket on the support portal, details of which are available at the end of this document.

 Make sure you describe the problem thoroughly and attach the file to the ticket.

 You can also view the contents using Wireshark

Option	Description
Adapter	Choose your adapter from the drop-down, typically eth0 or eth1. You can also capture all interfaces with “any“
Packets	This value is the maximum number of packets to capture. Typically, 99999
Duration	Choose a maximum time that the capture will run for. A typical time is 15 seconds for high-traffic sites. The GUI will be inaccessible during the capture period
Address	This value will filter on any IP address entered in the box. Leave this blank for no filter.

To maintain performance, we have limited the download file to 10MB. If you find that this is not enough to capture all the data needed, we can increase this figure.

Note: This will have an impact on the performance of live sites. To increase the available capture size, please apply a global setting jetPACK to increase the capture size.
